HORIZONTAL / VERTICAL SUBMERGED CENTRIFUGAL PUMP


HORIZONTAL / VERTICAL SUBMERGED CENTRIFUGAL PUMP

+

HORIZONTAL / VERTICAL SUBMERGED CENTRIFUGAL PUMP

+

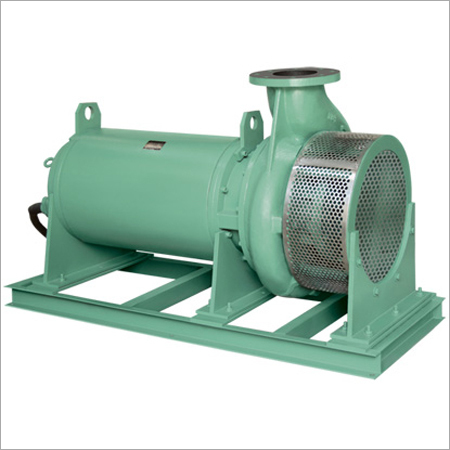

Indo-Force Horizontal / Vertical Submerged Centrifugal Pumps


Indo-Force Horizontal / Vertical Submerged Centrifugal Pumps are designed to handle Clear Water. It can handle Clear Water or Low Velocity clear liquids at moderate heads more efficiently and economically than any other type of pump.

Precision balancing of all factors in their design provides this efficient operation along with mechanical dependability and low cost maintenance.

Key Features:

  • Simplicity of design ensures long, efficient unit life and minimum power consumption
  • All parts are standardized and accurately machined for true alignment
  • Impellers are dynamically balanced and constructed with single inlets
  • Practically eliminating end thrust resulting in high operating efficiency

Material of Construction


Sr. Description Material Sr. Description Material
1EYE BOLTC.S.13IMPELLERS.S.-316
2TOP COVERC.I. FG - 26014SPIRAL PLATEC.I. FG - 260
3BALL BEARING N/DC.S.15STRAINERS.S.
4ROTOR DIECASTCRNO + ALLU.16IMPELLER LOCKET NUTS.S.
5MOTOR BODYC.I. FG - 26017MECHANICAL SEALTC/TC SIC/SIC
6STATOR STAMPINGCRNO18OIL20W40
7ROTOR SHAFTS.S.-41019WINDING COILCOPPER
8BEARING COVERC.I. FG - 26020RUBBER GROMATENITRIL RUBBER
9BALL BEARING D/EC.S.21CABLECU+PVC
10BEARING HOUSINGC.I. FG - 26022CABLE PROTECTORNITRIL RUBBER
11OIL CHAMBERC.I. FG - 26023BASE FRAMEM.S. FABRICATED
12PUMP CASINGC.I. FG - 260

Note: MOC & design are subject to change without prior intimation

Applications

  • Port & Docks
  • Water Supply Scheme
  • Water / Effluent Treatment Plants
  • Steel & Cement Plants
  • Lifting Raw Water from Different Sources (Canal, River, Dam, Check Dam, French well or Jack well, Large Lakes)

Range

  • Outlet Size : 50 mm to 400 mm
  • Capacity : 2000 m³/Hr.
  • Head : Upto 120 Mtr.
  • RPM : 960/1450/2900
  • Protection / Enclosure : IP 68
  • Duty : S1
