Rotary Gear Pump
Discription

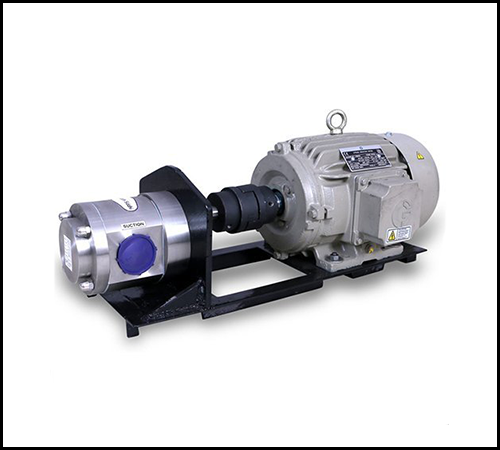

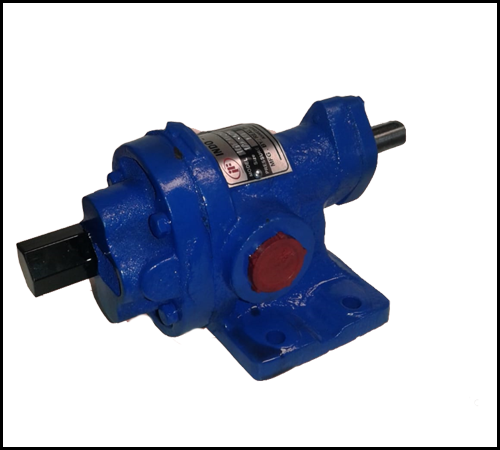

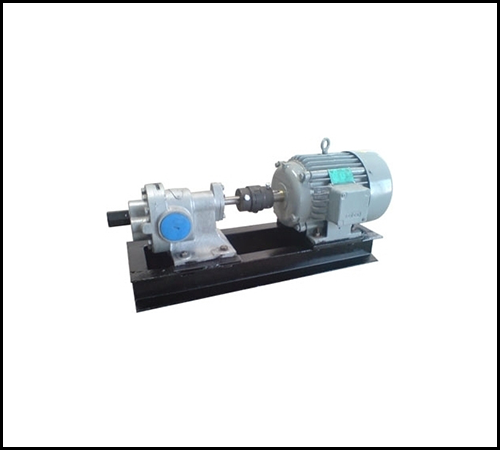

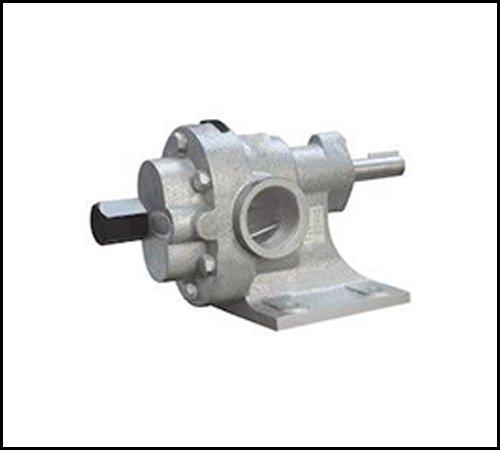

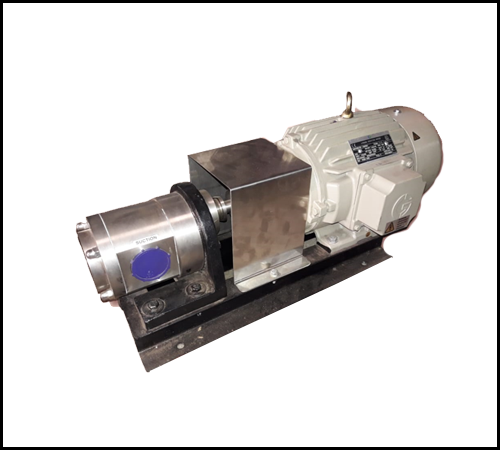

Real Industries offers most efficient and economic range of Positive Displacement Rotary Gear Pumps under the brand name "INDO FORCE" having special features like simple compact design, low noise, high efficiency, easy to maintain, reliable and low cost. "INDO FORCE" Rotary Gear Pumps are ideal for Chemical, Petro chemical, Food, Oil, Steel Refining, Paints, Dairy Sugar & Pharmaceutical Industries etc. The Pump is useful for handling viscous liquids i.e. all kinds of oils, viscous chemicals & food applications etc.
MODEL & PERFORMANCE CHARGE
| PUMP MODEL |
SUCTION & DELIVERY | CAPACITY AT 1440RPM | RECOMMENDEDMOTORBHPATDIFFERENTIALPRESSURE (KG/CM2)WITH1500SSUVISCOSITY | W TO F {APPROX.) BAREPUMP INKG. |
|||||||||||||||||||
| LPM | US GPM | M3/hr | Kg/m2 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||||||||
| IFG-0.5 | 1/2" | 1/2" | 25 | 5.3 | 1.2 | KW HP | 0.30 | 0.35 0.5 | 0.42 | 0.45 |
|
0.60 | 0.65 |
|
0.75 | 2.2 | |||||||
| IFG-1.0 | 1" | 1" | 50 | 13.2 | 3.0 | KW HP | 0.4 | 0.50 1.0 | 0.60 | 0.70 |
|
1.17 | 1.30 |
|
1.59 | 5.0 | |||||||
| IFG-1.5 | 1½ | 1½ | 110 | 29.0 | 6.6 | KW HP | 1.0 | 1.45 2.0 | 1.95 | 2.10 |
|
2.95 | 3.25 |
|
3.75 | 9.5 | |||||||
| IFG-2.0 | 2" | 2" | 225 | 59.4 | 13.5 | KW HP | 2.0 | 2.0 3.0 | 3.2 | 3.75 |
|
5.6 | 4.3 |
|
7.11 | 17.2 | |||||||
| IFG-2.5 | 2½ | 2½ | 350 | 92.5 | 21.0 | KW HP | 4.15 | 5.0 5.0 | 6.1 | 7.3 |
|
10.3 | 11.2 |
|
12.25 | 28.5 | |||||||
| IFG-3.0 | 3" | 3" | 500 | 132.0 | 30.0 | KW HP | 4.5 | 6.6 1.0 | 8.4 | 9.9 |
|
13.0 | 13.9 |
|
15.9 | 50.0 | |||||||
MATERIAL OF CONSTRUCTION STADARDPARTS
Body: IS.210 FG 220 C.I. Grade
Back Cover: IS. 210 FG 220 C.I. Grade
Geras: EN- 8EN - 24H. Nitrided
Shaft: EN-19H.G.
Bushes: Non Ferrous
Seal: Neoprene Oilseal/"Z"PackTeflon
Pressure relief valve will be provided in all models.
DIMENTIONAL DRAWING TABLE
| MODEL | A | B | c | E | F | G | s | T | H | H1 | H2 | H3 | L | M | N | DQ | DQ | K | PQ |
| IFG-0.5 | 172 | 46 | 78 | 51 | 40 | 70 | 90 | 70 | 63 | 50 | 90 | 6 | 22 | 4 | 13.5 | 12 | 8 | 70 | 1/2"B.SP. |
| IFG-1.0 | 236 | 64 | 105 | 64.5 | 50 | 93 | 125 | 95 | 90 | 73 | 128 | 8 | 27.5 | 5 | 19.5 | 17 | 10 | 86 | 1"B.SP. |
| IFG- 1.5 | 240 | 75 | 120 | 80 | 70 | 115 | 150 | 130 | 110 | 88 | 155 | 12 | 35 | 6 | 24.5 | 22 | 12 | 108 | 11rrB.SP. |
| IFG-2.0 | 360 | 98 | 140 | 92 | 100 | 140 | 180 | 160 | 132 | 105 | 192 | 15 | 40 | 8 | 28 | 25 | 15 | 142 | 2"B.SP. |
| IFG-2.5 | 420 | 110 | 175 | 110 | 120 | 155 | 200 | 185 | 145 | 114 | 215 | 18 | 45 | 8 | 31 | 28 | 15 | 160 | 211rB.SP. |
| IFG-3.0 | 457 | 100 | 195 | 105 | 155 | 175 | 220 | 225 | 165 | 130.5 | 241 | 20 | 50 | 10 | 35 | 30 | 15 | 190 | 3"B.SP. |
