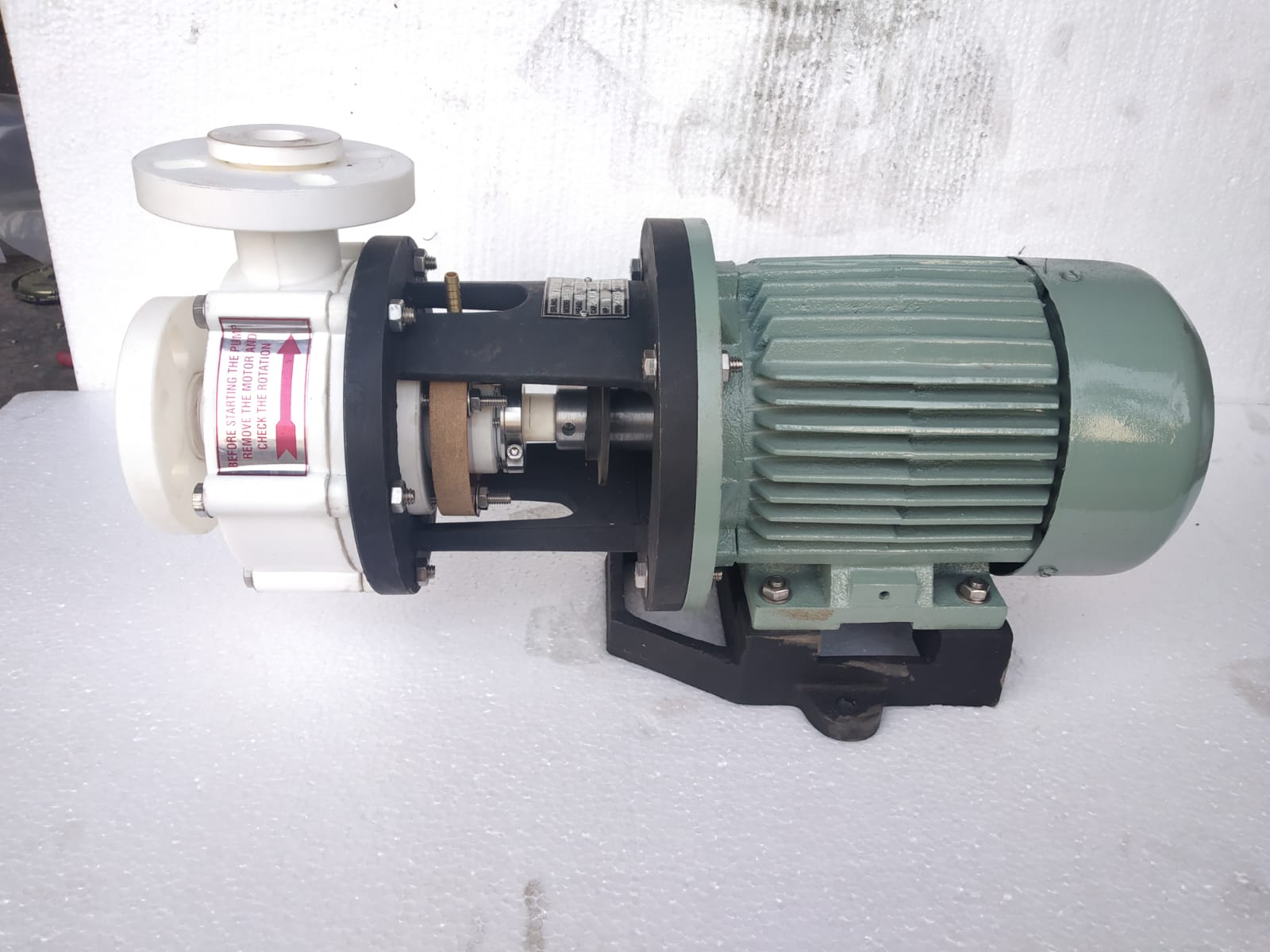

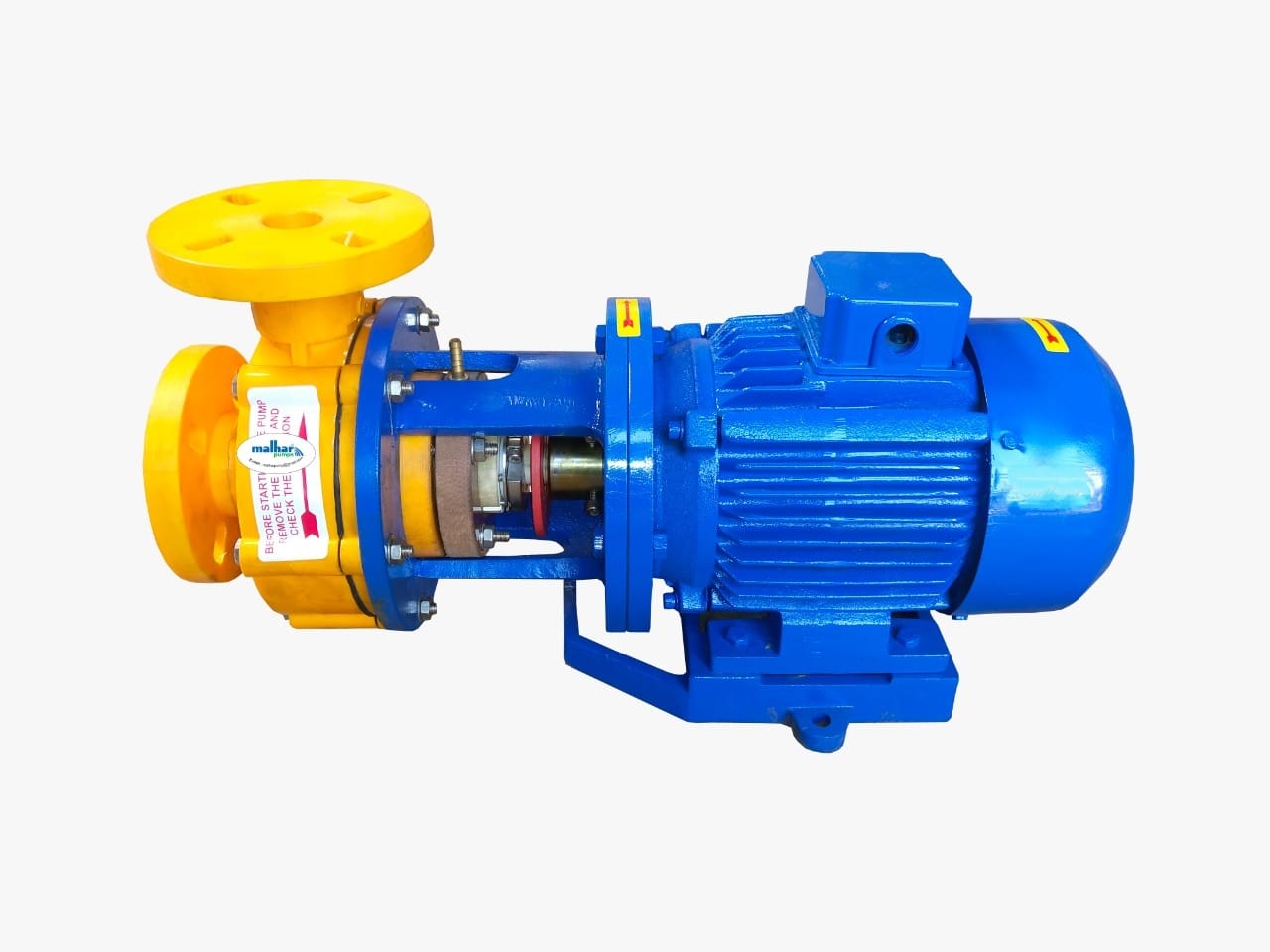

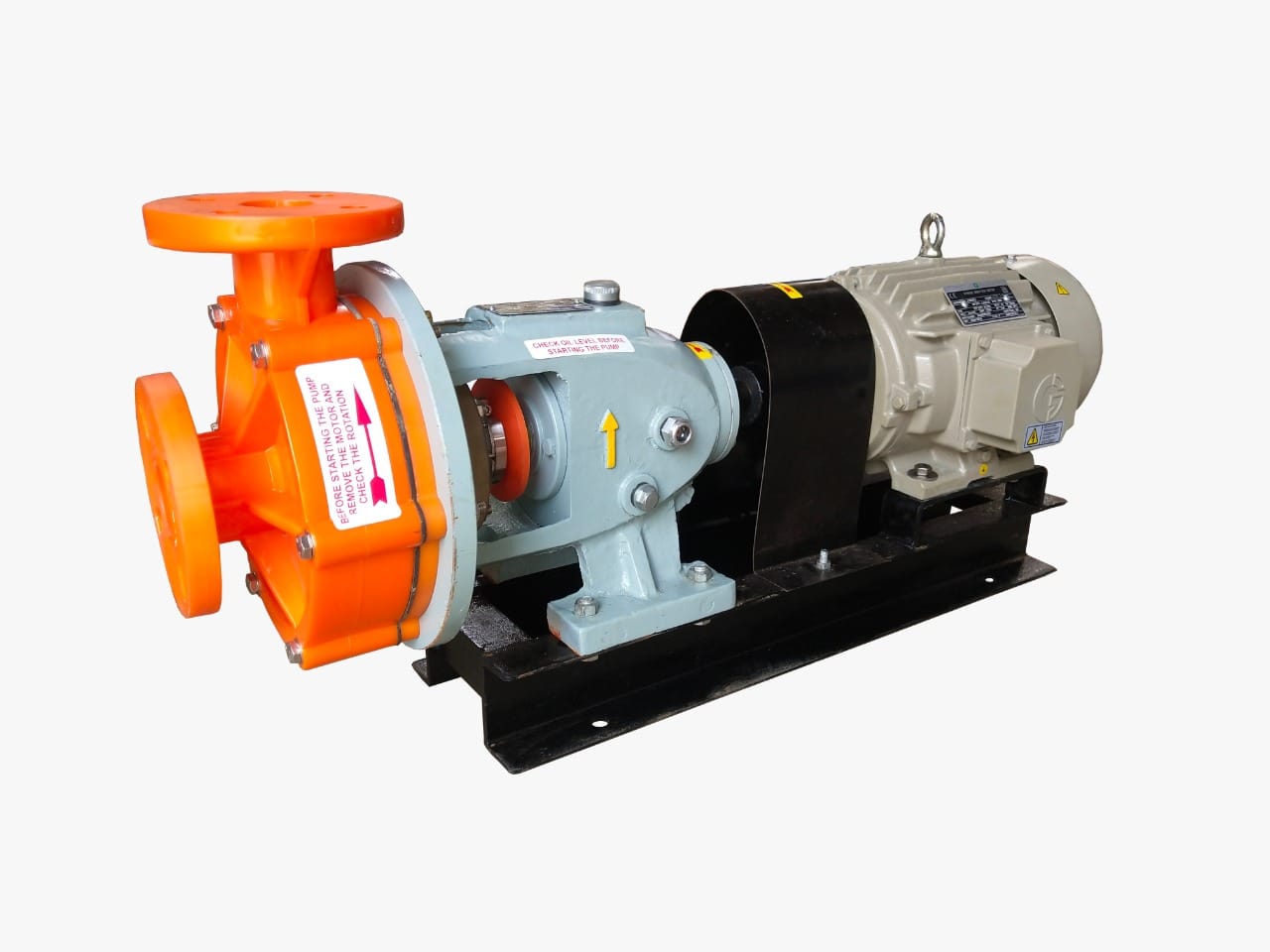

POLYPROPYLENE CENTRIFUGAL PUMPS
Indo-Force POLYPROPYLENE CENTRIFUGAL PUMPS
Applications
- Water treatment Plant, Effluent Treatment, Filter Press for dyes and Chemicals, Fertilizer Plants, Thermal and atomic power plants, Drugs & Pharmaceutical industries
- Descaling of Tubes, Scrubbing of corrosive gases like Cl₂, Br₂, So₄, NH₃, F₂ etc.
- Excellent for Vacuum ejectors
- Transferring of concentrated HCL from Road tankers, Paper & Pulp Industries, Pickling in Steel rolling mills
- Caustic soda plants, Chlorinated Brine, Conc. HCL, Dilute H₂SO₄ etc.
- Phosphoric Acid Plants, Gas Washing Plants, Rayon Plants, Electro Plating etc.
Material of Construction
- Casing: Top centerline discharge and integrated flanges, Single piece, joint less casing formed out of injection molded Polypropylene / PVDF / UHMWPE
- Impeller: Hydraulically balanced and accurately matched to casing profile
- Shaft: SS 304 Protected by shaft sleeve of alloy-20 or alumina field Teflon or ceramic
- Bearing Housing: Made from heavy duty graded casting
- Bearing: SKF Ball Bearing
- Mechanical Seal: Rotary part of seal is made from Glass filled Teflon & Stationary part of seal is made from high alumina filled ceramic
- Distance Piece: Heavy duty one piece injection molded polypropylene
Range
- Head: Up To 60 mtrs
- Pump Size: 25 mm to 150 mm
- Capacity: 180 M³/hr
- Speed: 1440/2880 RPM at 50 Hz & 1750/3500 RPM at 60 Hz
- Temperature: up to 110°C
Temperature Resistance
- PP: -50° TO 80°C
- PPH: -90° TO 100°C
- PVDF: -100° TO 115°C
Technical Specifications
| MODEL | SUCTION (MM) |
DELIVERY (MM) |
IMPELLER (MM) |
HP | RPM | Capacity in M³/hr | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Head in meter → | |||||||||||
| IFPP-100 | 25 | 25 | 100 | 01 | 2900 | 12 04 |
11 06 |
08 07 |
05 09 |
02 10 |
00 11.5 |
| IFPP-120 | 40 | 32 | 120 | 02 | 2900 | 19 05 |
15 07 |
10 11 |
08 13 |
05 15 |
00 17 |
| IFPP-50R | 40 | 40 | 190 | 02 | 1440 | 26 02 |
25 05 |
12 08 |
06 10 |
2.0 11 |
00 12 |
| IFPP-130 | 50 | 40 | 135 | 03 | 2900 | 22 09 |
18 14 |
13 17 |
08 21 |
05 23 |
00 25 |
| IFPP-160R | 40 | 40 | 140 | 03 | 2900 | 25 05 |
22 10 |
15 15 |
09 18 |
05 20 |
00 23 |
| IFPP-50 | 75 | 40 | 205 | 03 | 1440 | 32 10 |
25 11 |
15 12 |
05 13 |
00 14 |
00 15 |
| IFPP-160 | 75 | 40 | 157 | 05 | 2900 | 30 10 |
25 15 |
18 20 |
10 25 |
05 27 |
00 29 |
| IFPP-55 | 75 | 50 | 210 | 05 | 1440 | 46 06 |
37 12 |
30 14 |
15 15 |
05 17 |
00 16 |
| IFPP-170 | 75 | 50 | 160 | 7.5 | 2900 | 50 10 |
40 15 |
35 20 |
20 25 |
07 30 |
00 33 |
| IFPP-40 | 50 | 40 | 190 | 12.5 | 2900 | 40 25 |
35 30 |
30 35 |
25 40 |
10 45 |
00 50 |
